Urinal Sensors

Auto Flush Valve

Name: AS 05-IR (E)/(B) Auto Flush Valve
Brand: Askon Hygiene
SKU: AS 05-IR (E)/(B)
Availability: InStock

Model No. AS 05-IR (E)/(B)

Made in India 40+ Yrs Manufacturing Pan India Service

About Auto Flush Valve

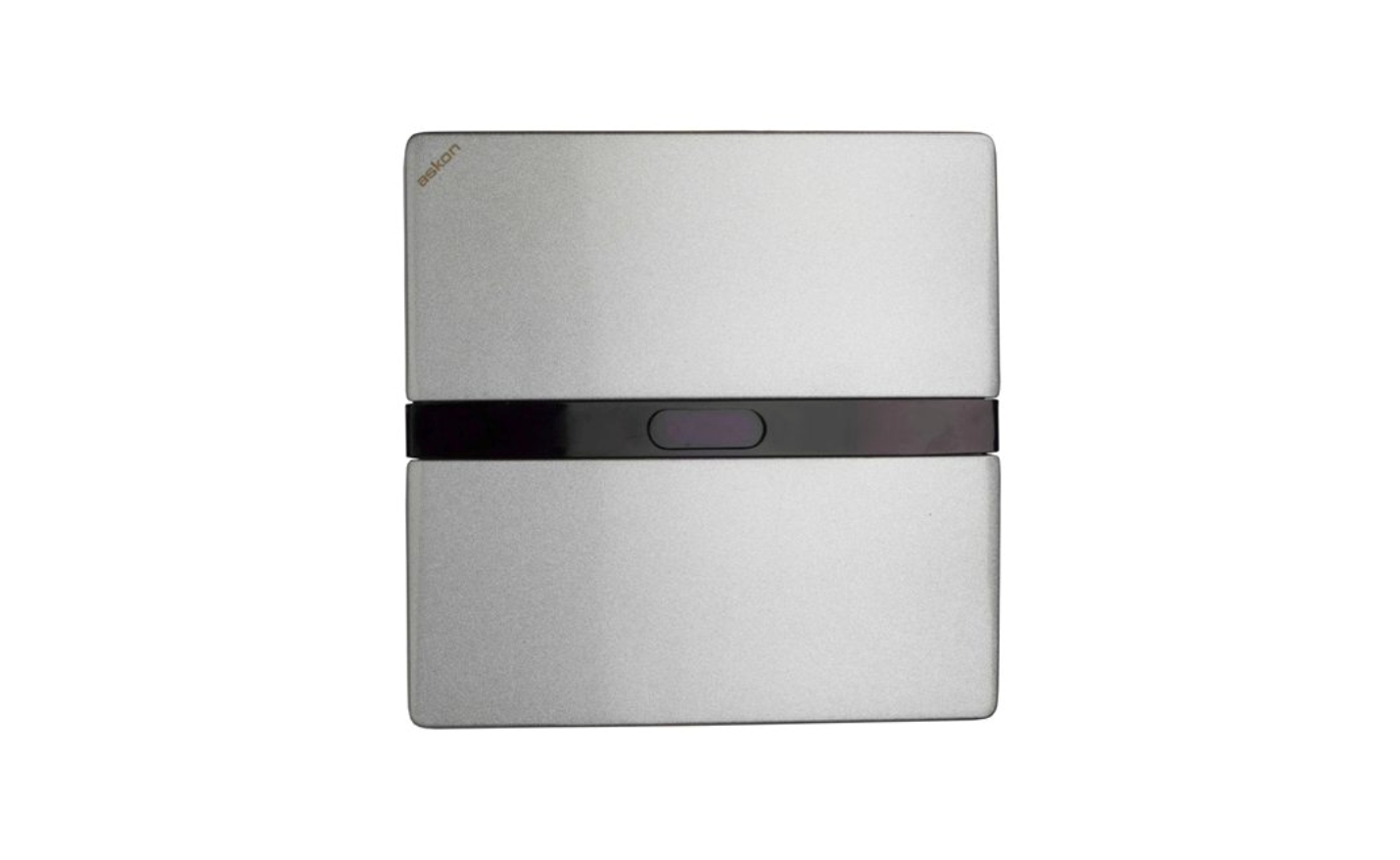

This urinal sensor model features an aluminium die casting front plate. It comes with our reliable and fast acting sensor technology. Brass flow control valve is located inside the box so the water can be turned ON /OFF as desired. The electronic sensor is completely sealed to prevent damage from water or moisture along with provision of waterproof connectors. The settings like the sensing range, duration of flush time and pre-flush ON / OFF can be adjusted with remote. No screws are visible on the front fascia plate.

Key Highlights

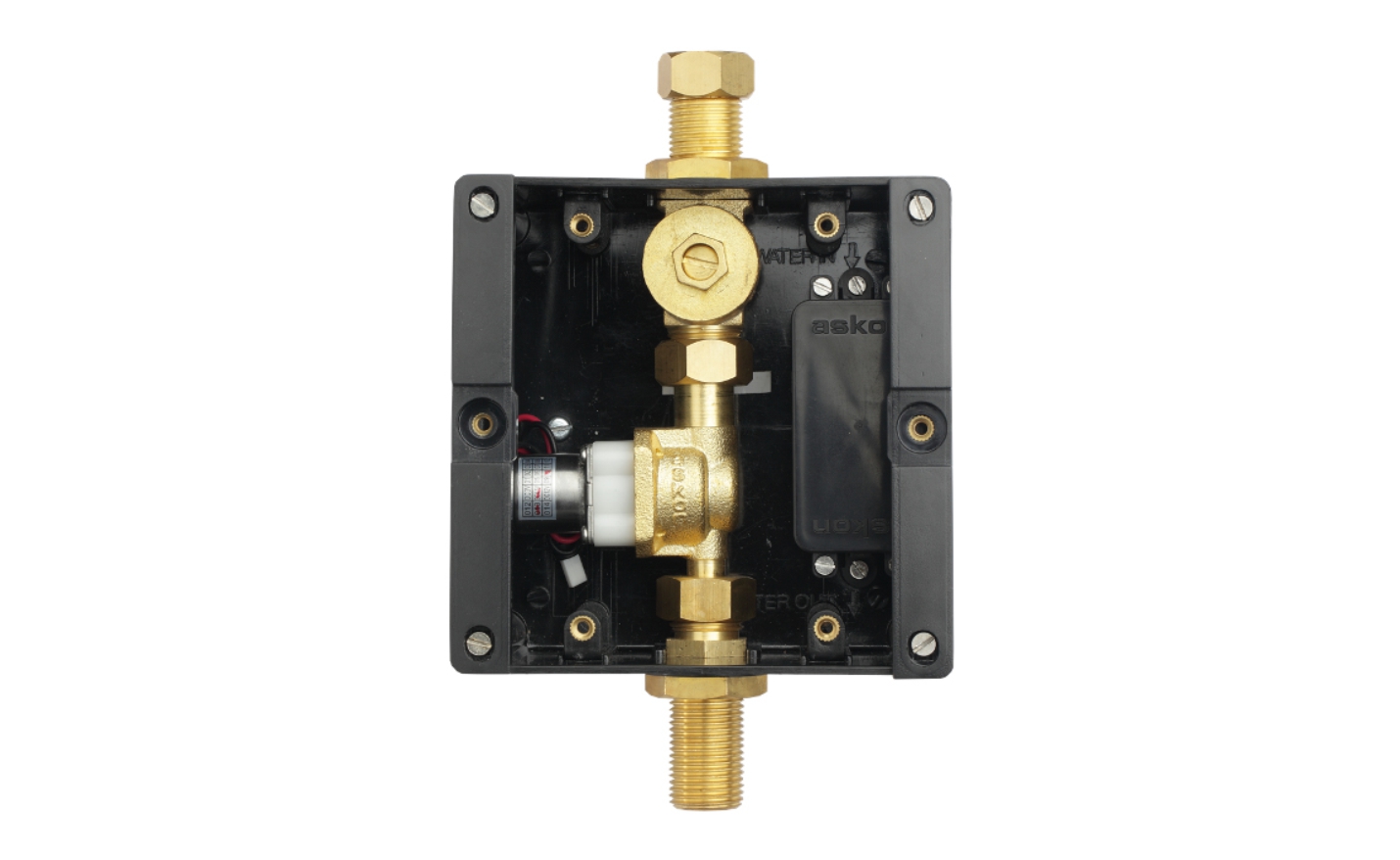

All components located inside the concealed box and are easily
accessible from front for easy maintenance.
Sensing range and flushing time can be adjusted with remote.
Non-corrosive & highly durable polycarbonate concealed box with
protective cover with ‘Min-Max’ wall thickness guidance for installation.
Integrated sensor and control circuit is completely sealed with resin to
prevent damage by moisture.
Brass water flow regulator valve allows water flow to be adjusted &
turned-off as desired.

Auto Flush Valve — Specifications

Inlet and outlet connections : 1/2” B.S.P
Power Supply : Battery Version (4 AA batteries, 6 VDC),
Electrical version (230V, 50Hz)
Material : Polycarbonate concealed box, brass flow control valve, brass solenoid valve, aluminium die casting front plate for AS 05-IR, Stainless Steel #304 front plate for AS 06-IR and AS 07-IR
Installation type : Concealed
Front plate dimensions : AS 05-IR : W 150 x H 150 x D 11 mm, AS 06-IR & AS 07-IR : W 150 x H 150 x D 8 mm
