Automatic Urinal Flush Valve

Image 1

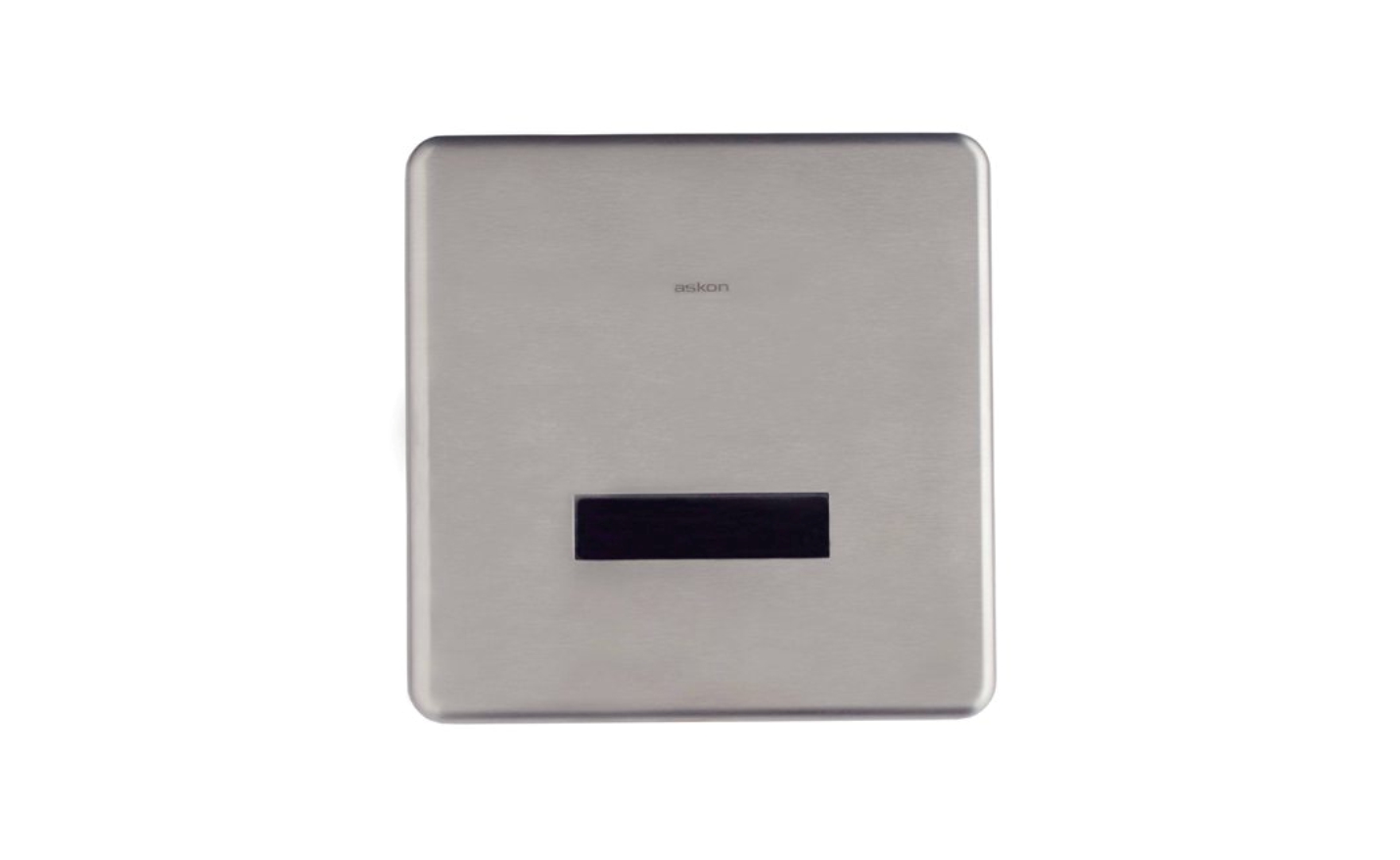

Automatic Urinal Flush Valve AS 09-IR (E) / (B)

This urinal sensor model features a stainless steel front plate. The classic design of the fascia plate makes this an extremely popular sensor flush valve. Apart from stainless steel brush finish, this model is available in black, champagne gold and rose gold colours. All our sensor flush valve models features our reliable and fast acting sensor technology for accurate and reliable sensing. The electronic sensor is completely sealed to prevent damage from water or moisture along with provision of waterproof connectors. The settings like the sensing range, duration of flush time and pre-flush ON / OFF are adjustable with remote. The screwless front fascia plate enhance the aesthetic appeal of these urinal sensor flush valves.



  • Accessible for easy maintenance
  • Solenoid valve with a piston valve technology, over traditional rubber diaphragm type valve
  • Adjustable sensing range and flushing time

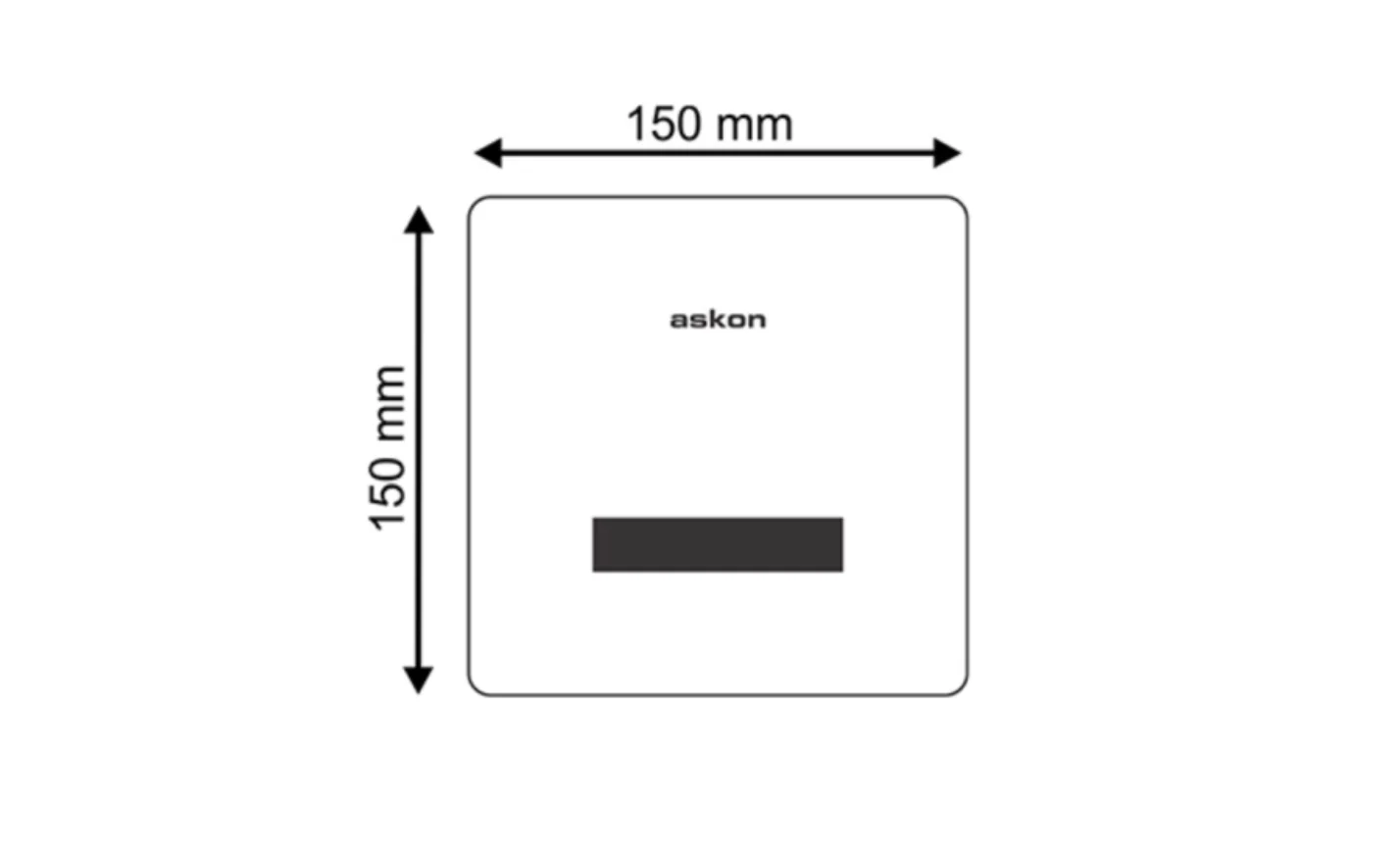

  • Front plate size:AS 09-IR - 150 mm (W) x 150 mm (H) x 8 mm (D)
  • Electrical type: 230V A/C single phase, Battery type: 6VDC (4 'AA' alkaline batteries)
  • Moisture-resistant electronic circuit sealed with resin

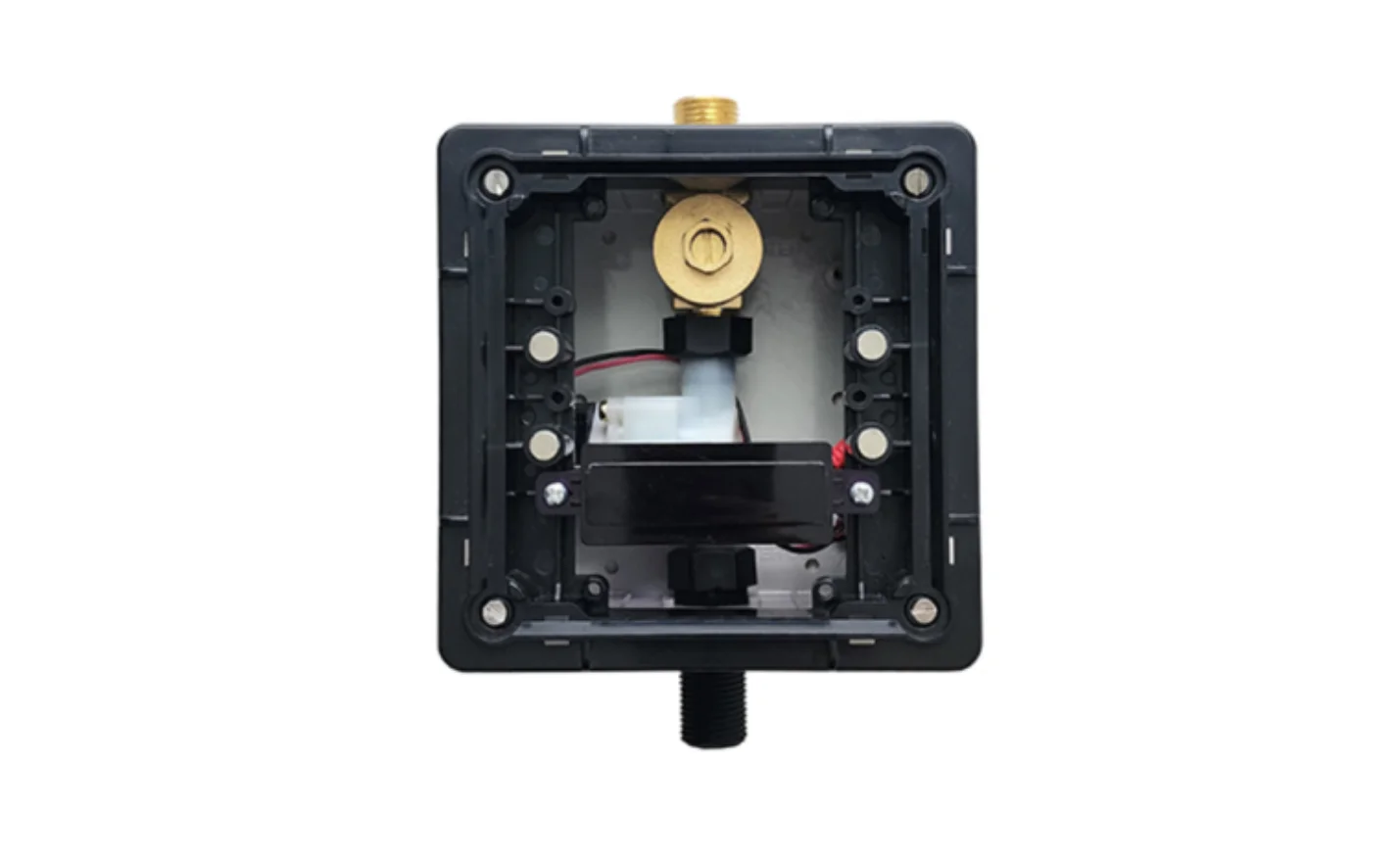

  • Concealed polycarbonate box dimensions: 130 mm (W) x 130 mm (H) x 72 mm (D)
  • Nylon solenoid valve (removable) and brass flow control valve inside the concealed box
  • Inlet and outlet connections: 1/2” B.S.P
  • 360° debris screen (filter) for protection
  • Remote-adjustable sensing range and flush duration (common remote for multiple units)
  • Suffix (E) indicates electrical version, (B) indicates battery version
