Wall Mount Urinal Sensor

Image 1

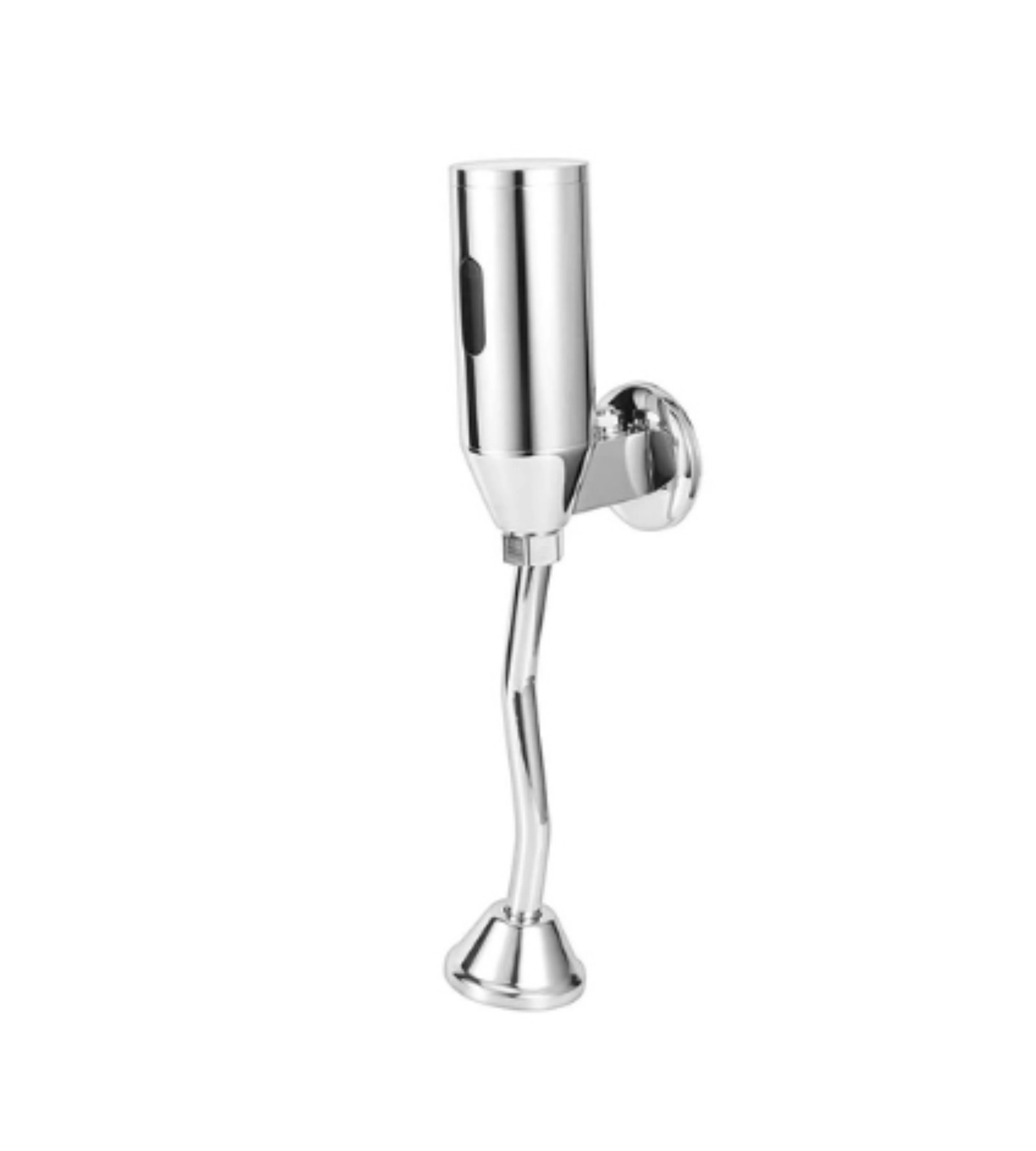

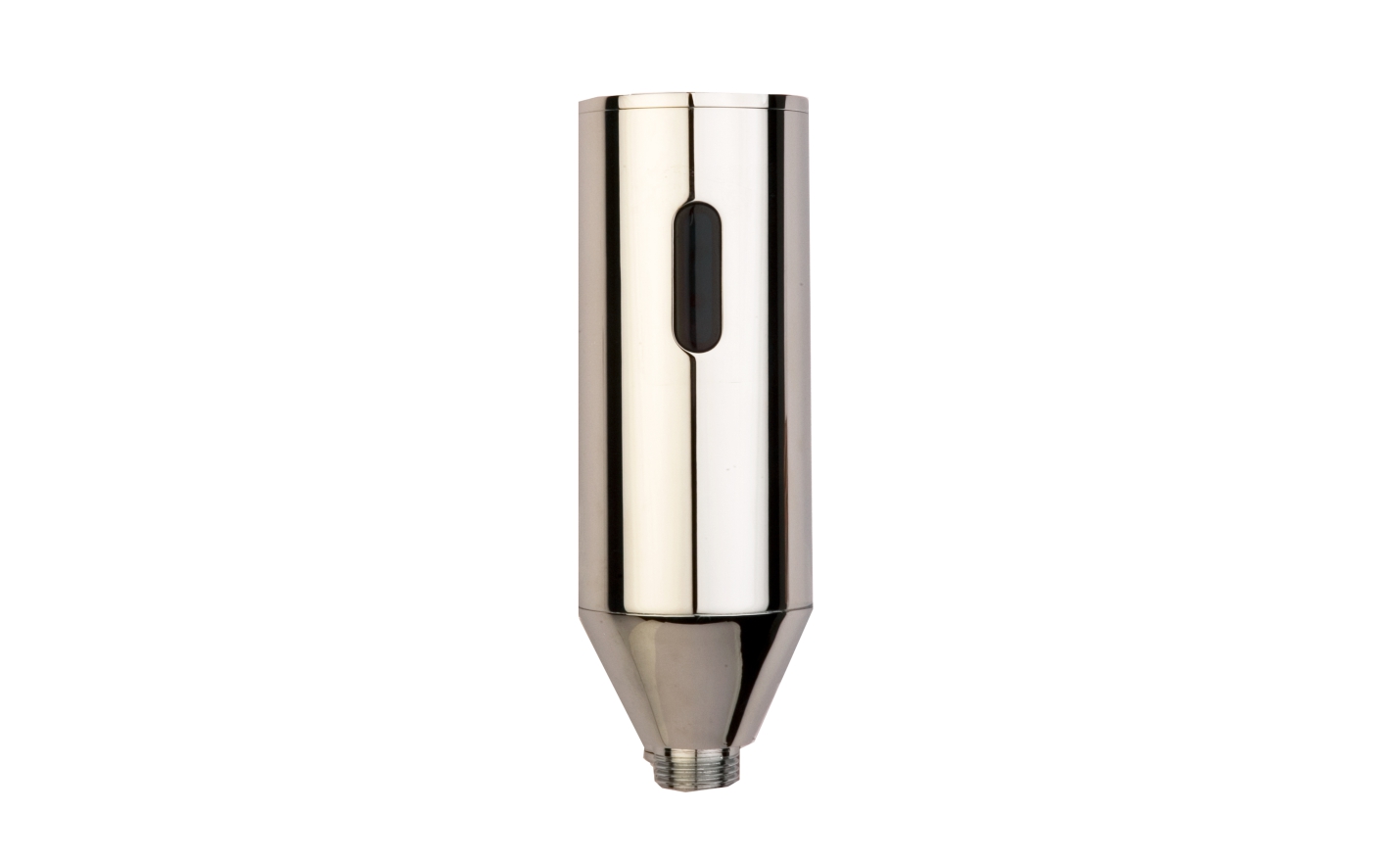

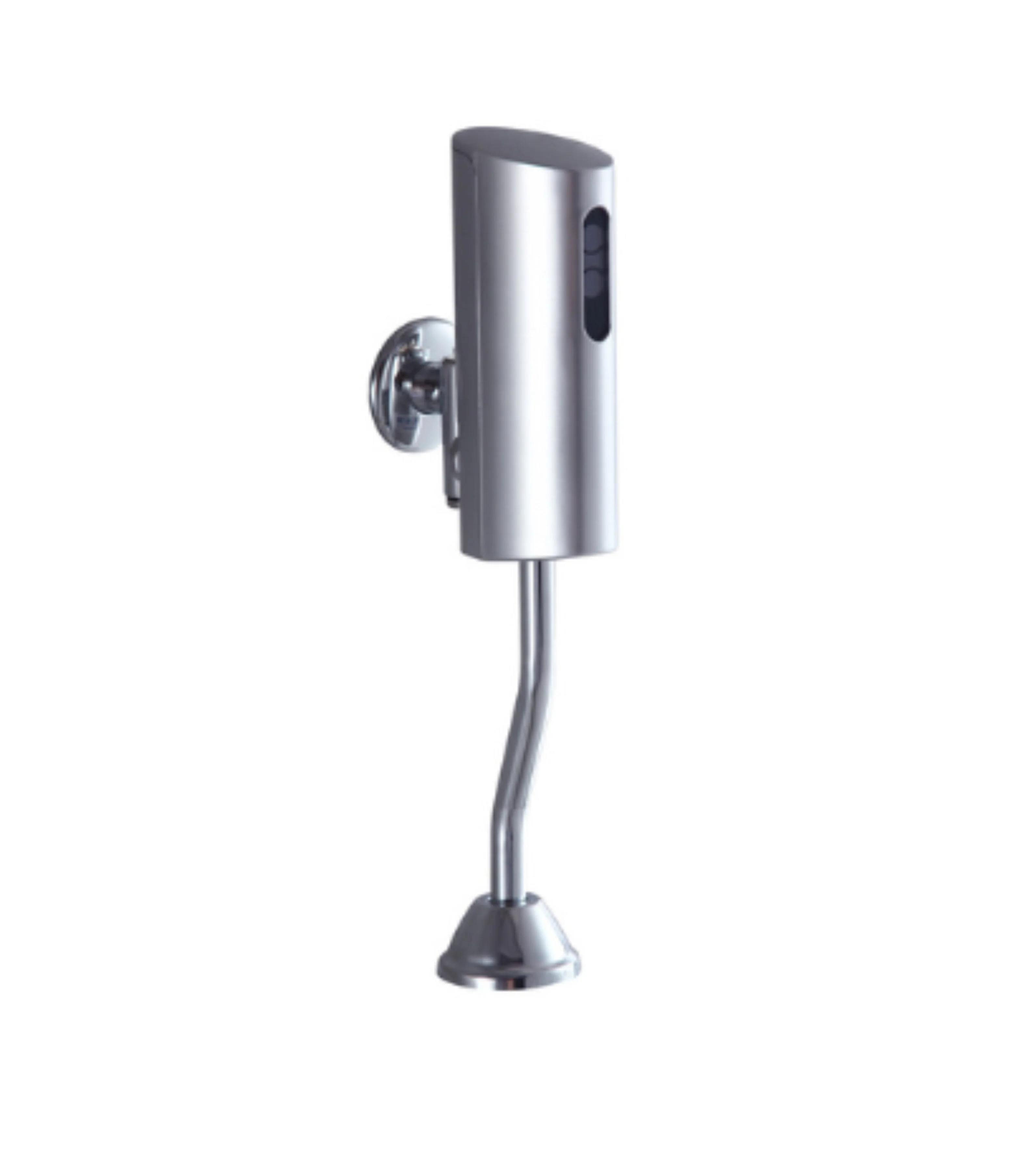

Wall Mount Urinal Sensor ASU-30B

This wall mount urinal sensor is completely made from chrome plated brass. It is battery operated. The flow control valve and the filter are located outside at the back of the urinal sensor flush valve for easy maintenance. It can be installed easily without need of concealing any control box in the wall. The internal components are easily accessible from top for easy maintenance by only removing a single screw. No screws are visible. The sensor flush valve are provided with all the necessary installation accessories. It operates on 4 AAA alkaline batteries which are easily available at low cost as compared to competing brands which use expensive customized batteries only available from manufacturer at high costs.



  • This urinal sensor is fully automatic with IR sensors.
  • It is mounted onto the wall externally and has a 360-degree debris filter.
  • Easy to maintain with easily replaceable spare parts.
  • The valves are sealed to prevent moisture damage.
  • Wall mount type
  • Includes built-in flow control valve
  • Inlet and outlet connections: 1/2” B.S.P
  • Moisture-resistant electronic circuit sealed with resin
  • Concealed polycarbonate box dimensions: 130 mm (W) x 130 mm (H) x 72 mm (D)
  • Powered by four AAA 1.5V alkaline batteries

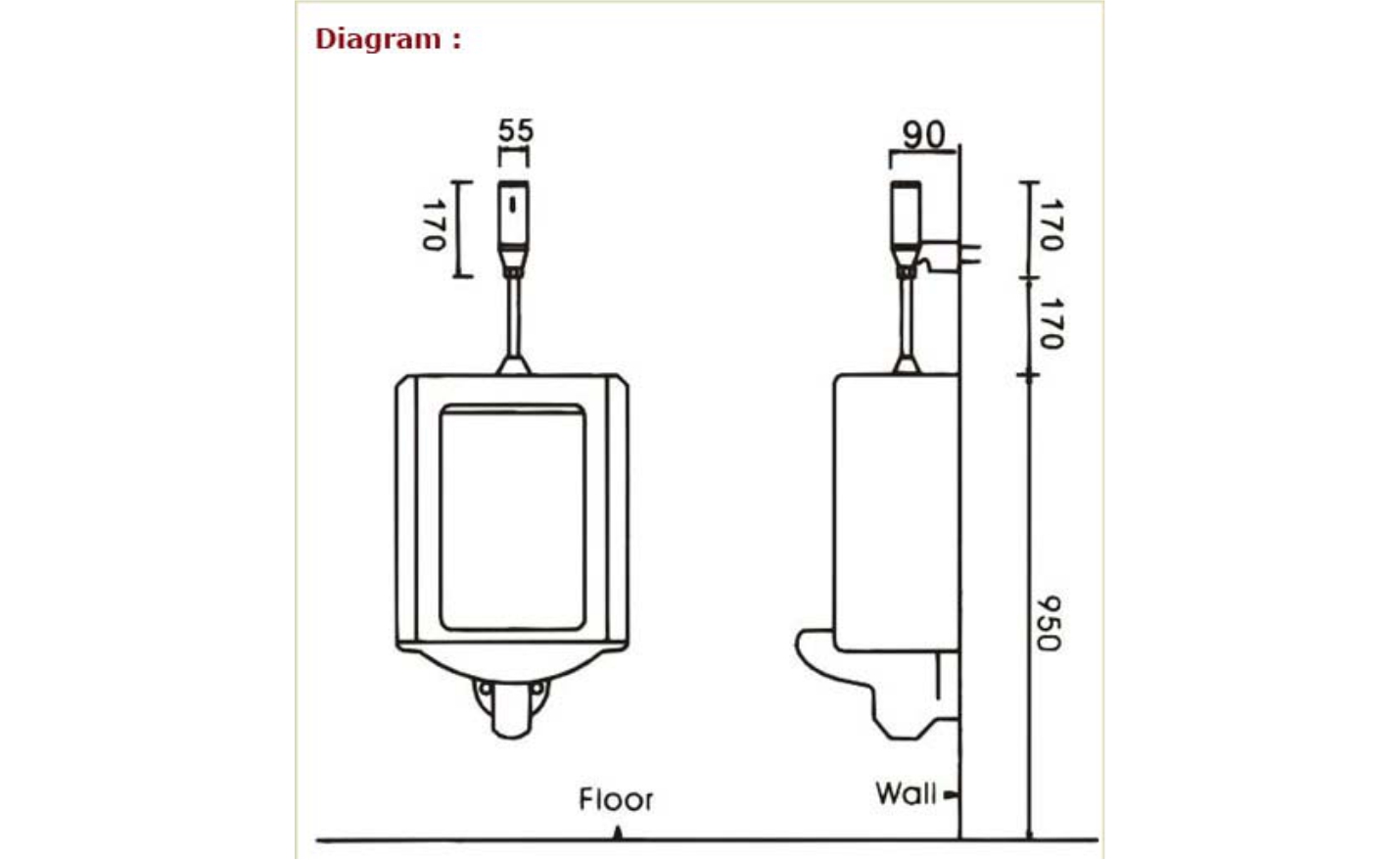

  • Dimensions: 170 mm (H) x 55 mm (W) x 90 mm (D)
