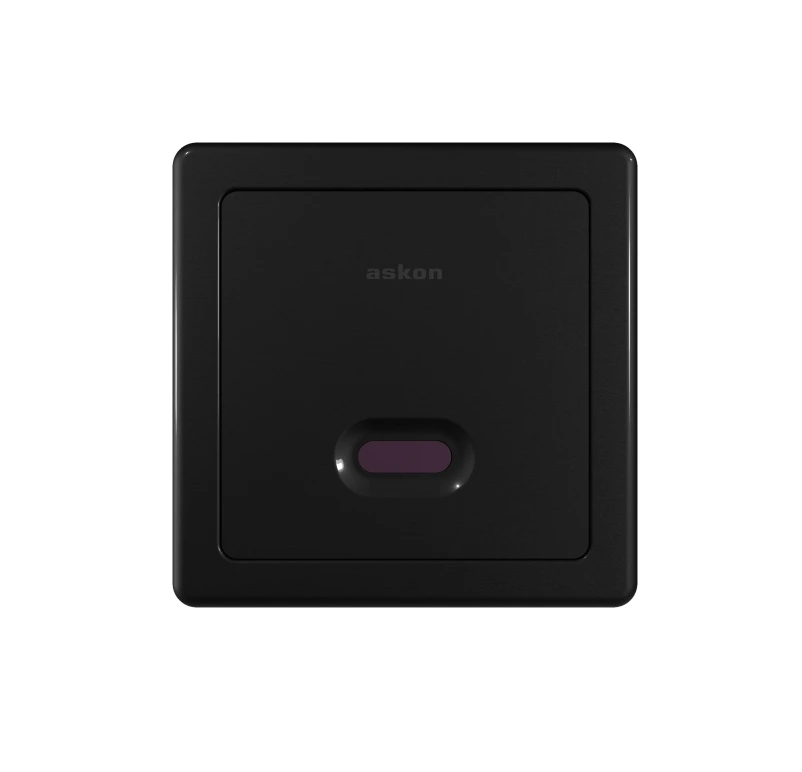

Urinal Sensor Brush Black
AS 06-IR-RG (E) / AS 06-IR-RG (B)

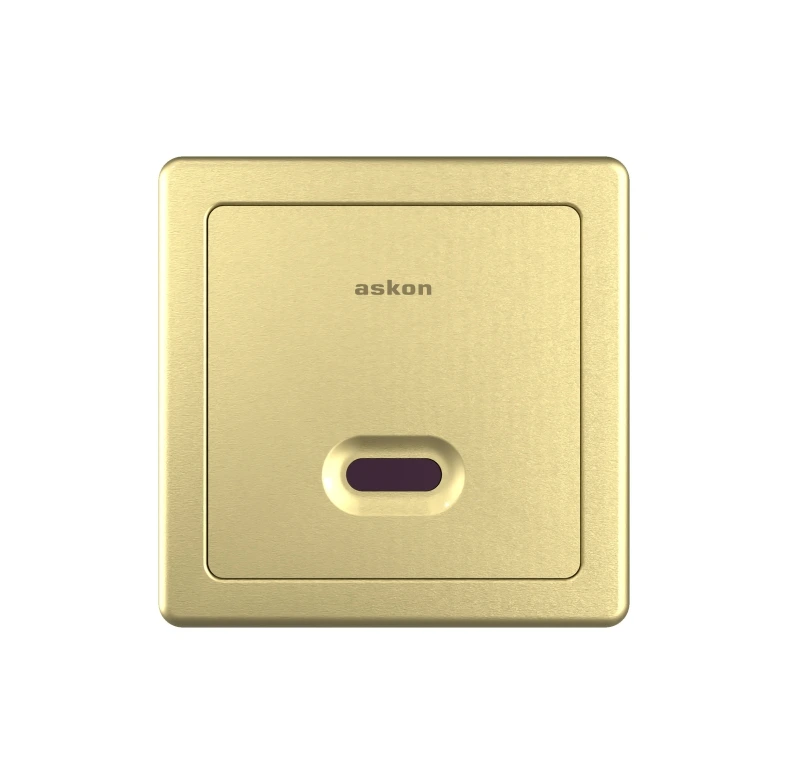

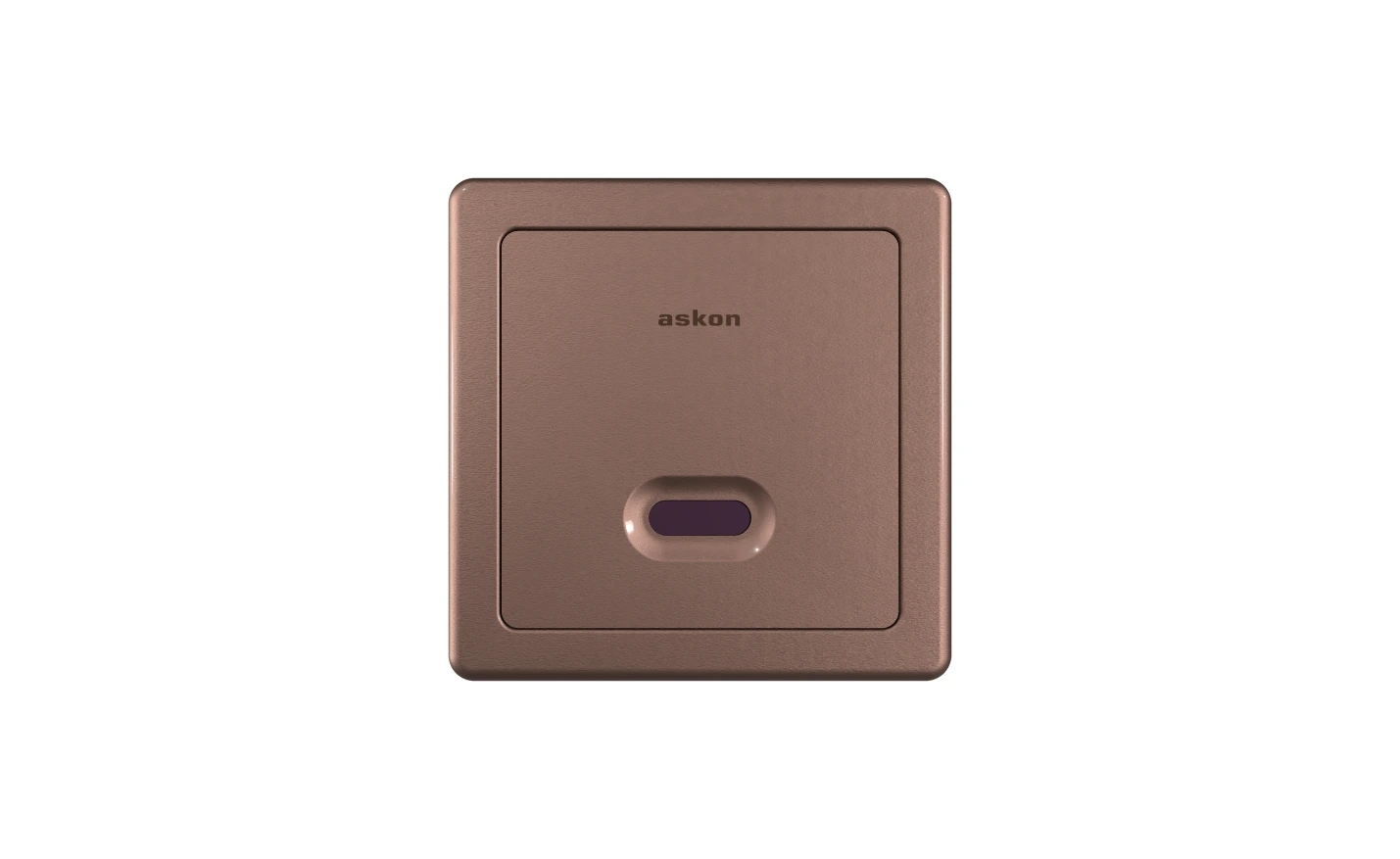

This urinal sensor model features a stainless steel front plate and frame. This urinal sensor model is also available in the black, gold and rose gold colours apart from stainless steel brush finish. The front plate is fitted magnetically without any outside visible screws. Brass flow control valve is located inside the box so the water can be turned ON /OFF as desired. It also features a brass solenoid valve which has life in excess of 10 years. The electronic sensor is completely sealed with resin to prevent damage from moisture and any water leakage. The settings of the flush valve can be changed from outside with a remote without need to open the flush valve. Also any component of the urinal sensor flush valve can be changed without the need to break the tiles or wall which is an extremely advantageous feature over the period of its life cycle.

Accessible for easy maintenance
Solenoid valve with a piston valve technology, over traditional rubber diaphragm type valve
Adjustable sensing range and flushing time
Designed and Manufactured in India
Non-rusting and extremely durable polycarbonate concealed box
No visible screws on front fascia plate
Dual filter mechanism to reduce choking of solenoid valve
Electronic circuits sealed to prevent moisture damage
No breaking tiles or wall for replacing spare parts
Settings to be changed with remote control

S.S. #304 front plate for AS 06-IR

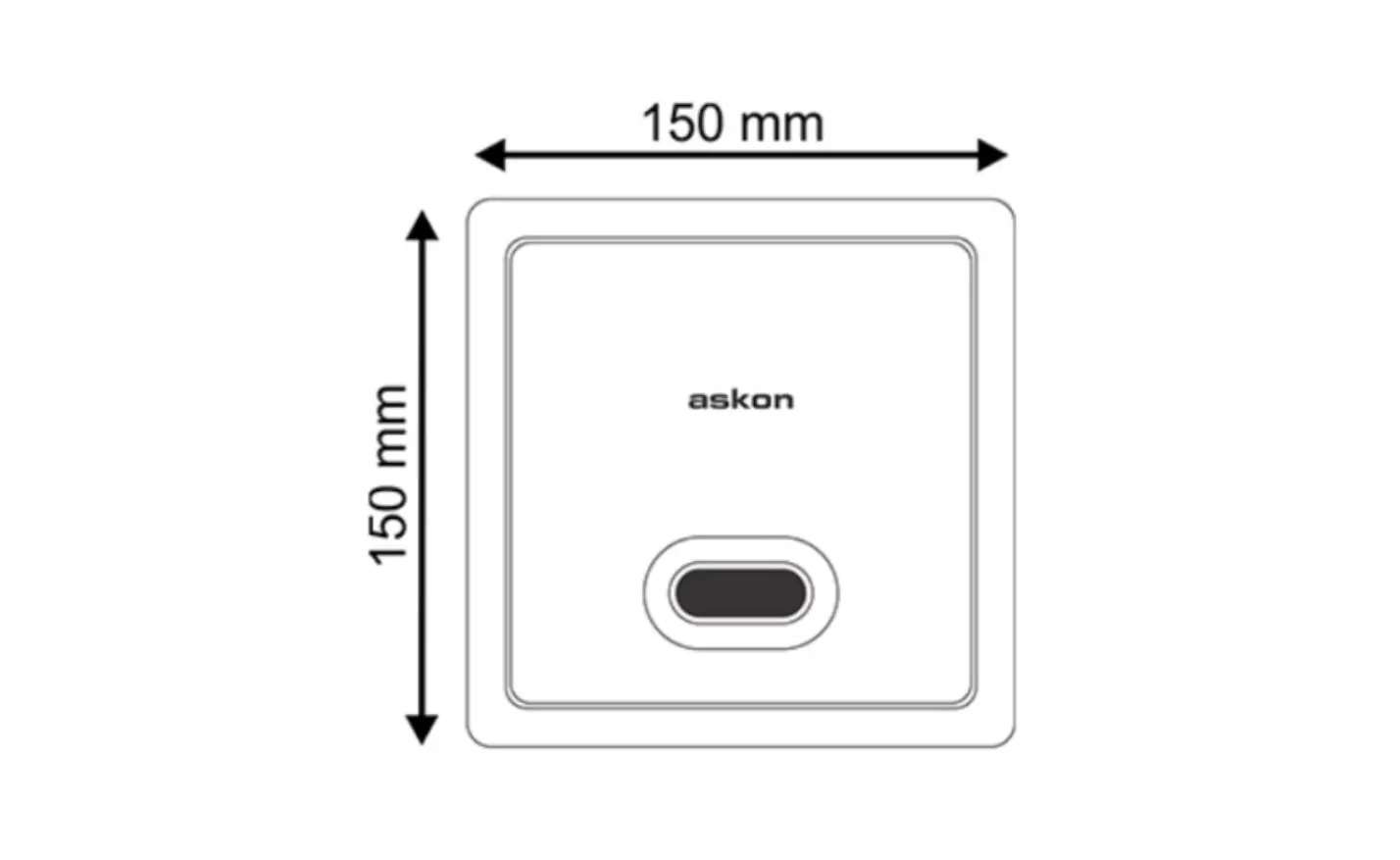

Front plate size: AS 06-IR - 150 mm (W) x 150 mm (H) x 8 mm (D)
Electrical type: 230V A/C single phase, Battery type: 6VDC (4 'AA' alkaline batteries)
Moisture-resistant electronic circuit sealed with resin
Concealed polycarbonate box dimensions: 130 mm (W) x 130 mm (H) x 72 mm (D)

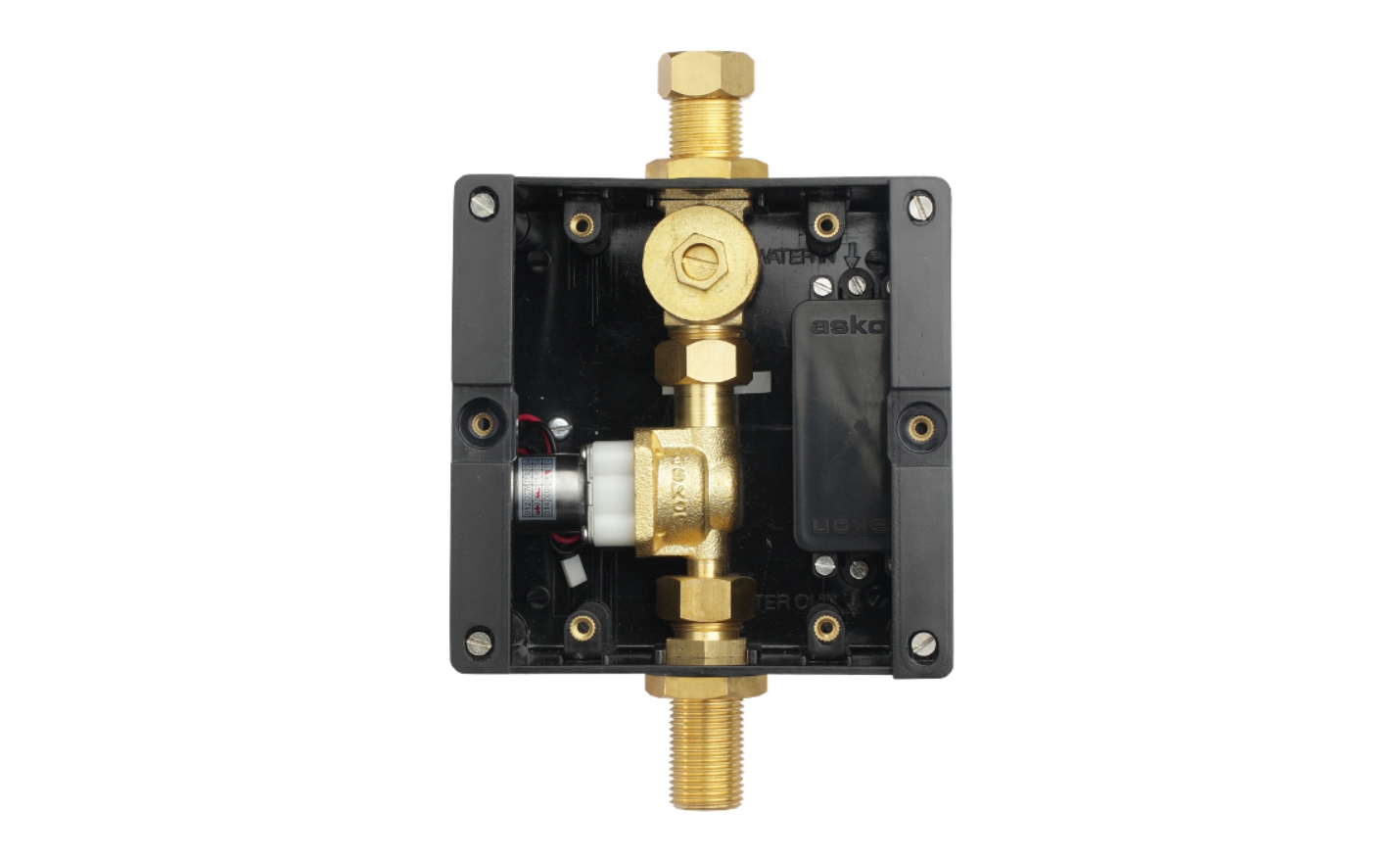

Brass solenoid valve (removable) and flow control valve inside the concealed box
Inlet and outlet connections: 1/2” B.S.P
360° debris screen (filter) for protection
Remote-adjustable sensing range and flush duration (common remote for multiple units)
Suffix (E) indicates electrical version, (B) indicates battery version
